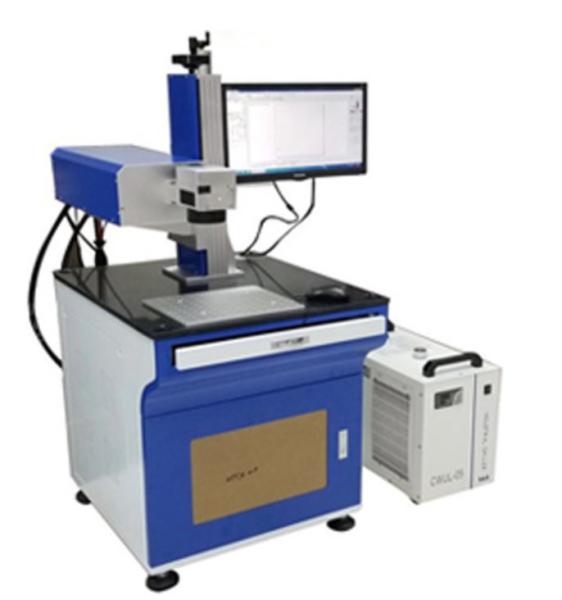

Non Metal UV Laser Marking Machine 10~100kHz For Plastics Metals
Ceramic Leather
Product Features
The UV laser beam is very small, the heat affected zone is very
small, and the absorption rate is higher for the wider range of
materials. Therefore, UV laser has a wider range of material
adaptability. It is more suitable for ultra fine marking of various
materials.
Product Parameters
| Model | DPX-UV3 |
| Wavelength | 355nm |
| Average power | 3W / 5W / 8W |
| Pulse per second | 10kHz~100kHz |
| Pulse width | 10~25 ns |
| Pulse stability | ≤±2%(RMS) |
| Beamdirectivity | ≤10μrad |
| Beam quality | M2<1.2 |
| Beammodel | base model(TEM00) |
| Polarization | level |
| Polarization character | P component Linear polarized light |
| Cooling mode | Air cooling |
| Warm-up time | 3~5mins |
| Power supply | 100~240V·AC,50~60Hz |
| Environmental conditions | Temperature 15°C~30°C/ Humidity<85%(Non-condensing) |
| Laser size | 23×20×13 cm |
| Power supply size | 42×36×13 cm |
Advantages
(1) Ultraviolet laser has a narrow pulse width and small thermal
influence to help generate peak power. The higher the peak power,
the perfect mark can be achieved on some relatively hard materials.
(2) Higher pulse stability, that is, better laser pulse consistency
will produce the same engraving effect, so UV marking is very
suitable for precise uv marking. The higher pulse repetition
frequency can meet the needs of fast marking and high production
efficiency.
(3) High photoelectric conversion efficiency, low energy
consumption and long service life.
Advantages
1. Cold processing marking: no thermal effect and material burning
problem.
2. Strong mechanical stability
3. Strong resistance to external temperature interference
4. Good beam quality
5. High long-term work stability
Application
Cosmetics, pharmaceuticals, food and other polymer bottles’
surface. Marking effect is fine, clear and solid, which is better
than the ink-jet printing and no pollution produced. Also used in
marking and dicing flexible PCB board, drilling tiny hole or
blind-hole on
silicon wafers, two-dimensional coding on LCD, glass container
surface, metal surface
coating, plastic keys, electronic components, gifts, communication
equipment, construction.
