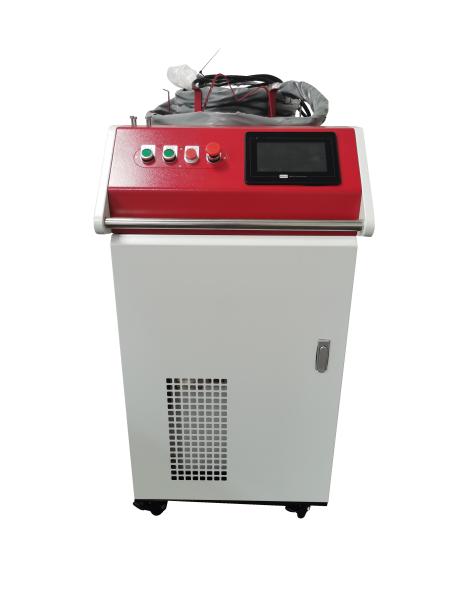

24 Hours 2mm 1070nm Laser Welding Machine For Metal

1000 Watt Handheld fiber Laser Welding Machine For metal sheet

Product Description:

Handheld Fiber laser welding machine is a laser welding equipment which couples the high energy laser beams into the optical fiber, after long-distance transmission, then transformed into parallel lights through collimating mirror to be focused on the work piece to implement the welding. The welding methods include vertical welding, paraller welding, stitch welding and so on.

Parameters:

Model	DPX-W1000
Laser Type	CW FIBER LASER
Laser Wavelength	1070nm
Laser Power	1000W
Recommended welding thickness	0.5~2mm
Spot size	0.2~5mm
Welding Speed Range	0~120mm/s
Cooling System	Water Cooling
Continous working time	24 Hours
Environment temperature	0-35°C
Voltage	220V/ 50 Hz or customized

Applications:

Advantages with Handheld Laser Welding Machine:

A. Handheld Laser Welding Machine is easy to handle and don't need the professional welder.

B. With 8-15m fiber wire, Can weld long-distance and large-area parts.

C. High quality and very stable: With a long lifespan to 100000 hours and free of maintance.

D. High efficiency: more than 5 times of the TIG welding with low energy consumption.

E. Various welding proceses: jam welding, seal welding, spot welding, stitch welding and overlap welding .

F:Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.

G. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small spot focus and automated welding

H: Low cost, no consumables, energy saving and enviroment protection.

I: Can support the different welding wires for stainless steel, Aluminum and Copper

SERVICE :

1. 1 year Guarantee for the whole machine.

2. 12 months Guarantee and free spare parts supply during this period.

3. 24 hours on line service

4. 3-7 days lead time

5. We will provide the Instruction Book, Operational manual and Training Video

6. Provide technical support for the whole lifetime on line

7. Shipping By air, DHL, Sea.
