1000W 1500 watt handheld laser welding machine for stainless steel
carbon steel aluminum 2mm
Introduction
Horizon Laser hand-held laser wwelding machine, uses latest
generation laser generator. It's equipped with wobble weld head
which is developed by ourselves. The machines appear to laser
equipment industries, fills in the blank of hand-held welding. It
has the advantages of simple operation, beautiful welding beam,
fast welding speed and no consumables. Welding in thin stainless
steel sheet, iron sheet, galvanized sheet and other metal materials
can perfectly replace the traditional argon arc welding, electric
welding and other processes. Handheld laser welding machine can be

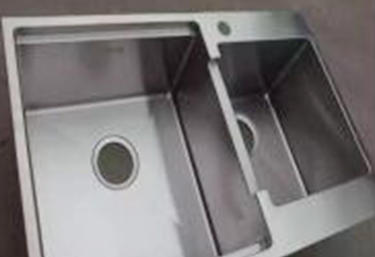

widely used in cabinets, kitchens, staircases, elevators, racks,
ovens, stainless steel doors and windows guardrail, distribution
boxes, stainless steel home and other industries complex and
irregular welding process.
Feature
Long lifetime, about 100,000 hours
High electro-optical conversion rate, 10 times than YAG laser
Fast welding speed, about 4 times than YAG laser
Low labour cost, can equal to 3~5 traditional welding workers
Compact design and built-in water cooling technology save its
footprint and ensure greatest mobility
Wobble welding gun can realize 4mm big spot welding, which allows
wider seam or rough edge
Classic nozzle kit available for various application sceneries
Widely applied in welding and forming of different sheet metal
pieces, AD signs, commercial kitchen, stove, crill cart, food cart,
doors, windows, frames, metal furniture, lamp covers, power cases,
fire boxes, pipes and etc.
Application
Used in welding of aluminum, copper, zinc, gold, silver and other
alloys and alloys, steel and other alloy materials, automotive
parts industry: engine cylinder head gasket; hydraulic tappet seal
welding; filter seal welding; spark plug welding; Valve push rod
welding; anti-collision airbag electric detonator seal welding;
crankshaft or cylinder liner heat treatment.
Parameter
| Parameters | Unit | DPX-W1000 / DPX-W1500 |
| Machine Power | / | 1000W / 1500W |
| Central Emission Wavelength | nm | 1080 |
| Welding Penetration Depth | mm | ＜3 |
| Max. Modulation Frequency | kHz | 10 |
| Adjustable Spot Size | mm | 0.1~2.0 |
| Output Power Tunability | % | 10-100 |
| Output Power Stability | % | ± 2 (＞1000 h) |
| Beam Quality | M2 | ＜ 1.3 |
| Optical Head | / | QBH |
| Operating Voltage | V | 220V 50Hz(60Hz optional) |
| Max. Power Consumption | Kw | 8 |
| Cooling Method | / | Inbuilt Water Cooling |
| Output Fiber Delivery Length | m | 8 |
| Control Interface | / | LED Touch Screen |
| Working Temperature | ℃ | 0-40 |
