20W high quality hot sale portable fiber laser marking machine for
LED lights
Products Description:
1.Q-switched fiber laser source. Precision transmission system and
high precise repeat positioning precision ensure perfect marking
performance.
2.We can use CNC machine body to move the galvo head to reach large
size marking, also we use moving table and fix galvo head to reach
large size marking.
3.The working size can be customized.
4.Servo motors & Ball screw or stepper motor & belt
Advantages:
1. Marking high precision spare parts, such as Gold, Silver,
Jewelry, Electronic spare parts etc.
2. High speed marking speed and perfect marking effects.
3. Working time: 100,000 hours , without any consumptive materials.
4. No consumables, low-power, power consumption is less than 500W.
5. High speed, high repeat positioning accuracy.
6. Life span up to 100,000 hours, can move with any workplace.
9. High precision scale.
Technical Parameters:
| Product | Fiber Laser Marking Machine |
| Fiber Laser Brand | Standard: MAX |
| Fiber Laser Lifetime | 100,000 hours |
| Fiber Laser Power | 20W, 30W, 50W |
| Beam Quality | M2≤1.2 |
| Max. Marking Speed | 12000mm/s |
| Laser Wavelength | 1064nm |
| Marking Area | Standard: 110mm*110mm
Optional: 70mm*70mm, 150mm*150mm, 200mm*200mm, 300mm*300mm |
| High-speed Galvanometer | Yes |

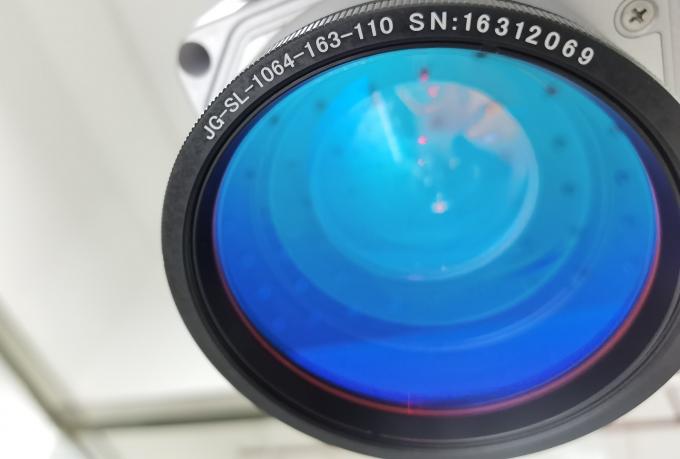

| Lens | F-Theta Lens |
| Fiber Laser Repetition Frequency | 20KHz-80KHz |
| Minimum Character | 0.05mm |
| Marking Depth | ≤5mm |
| Repeated Accuracy | ±0.001mm |
| Minimum Linewidth | 0.01mm |
| Positioning accuracy | 0.01mm |
| Repeatability | 0.01mm |
| Volt | 110V, 220V, or according to your request |
| Cooling Mode | Air Cooling |
| Graphic Format Supported | PLT, DXF, DXP, AI, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS,
SDT,BMP,JPG,JPGE ,etc |
| Software Supported | CORELDRAW, AUTOCAD, PHOTOSHOP, etc |
| System Supported | Windows, MAC OS |
| Operating Ambient Temperature | 5°C-45°C |
| Marterial Supported | Metal and Some Non-metal |
| Marking Software | EZCAD |
| Desktop Computer | Yes |
| Training Videos, User Manua | Yes |
| Warranty | 2 years |
| Fiber Test Results | Yes |
| Certificates | FDA, CE, ISO,RoHS, EUT, FC,CCC,PSE,IC |
| USB 2.0 Compatible | YES |
| Size (L*W*H) | 720mm*210mm*510mm |
| Weight | 40KG |
| Optional | Laptop, Rotary Device |
| Packing | Wooden case |
Marking samples:
