FDA 0.01mm Portable 20w Fiber Laser Marking Machine

    Buy cheap FDA 0.01mm Portable 20w Fiber Laser Marking Machine from wholesalers

    Buy cheap FDA 0.01mm Portable 20w Fiber Laser Marking Machine from wholesalers
    • Buy cheap FDA 0.01mm Portable 20w Fiber Laser Marking Machine from wholesalers
    • Buy cheap FDA 0.01mm Portable 20w Fiber Laser Marking Machine from wholesalers
    • Buy cheap FDA 0.01mm Portable 20w Fiber Laser Marking Machine from wholesalers

    FDA 0.01mm Portable 20w Fiber Laser Marking Machine

    Ask Lasest Price
    Brand Name : Horizon Laser
    Model Number : DPX-P20
    Certification : CE
    Price : USD
    Payment Terms : T/T
    Supply Ability : 100 sets per month
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

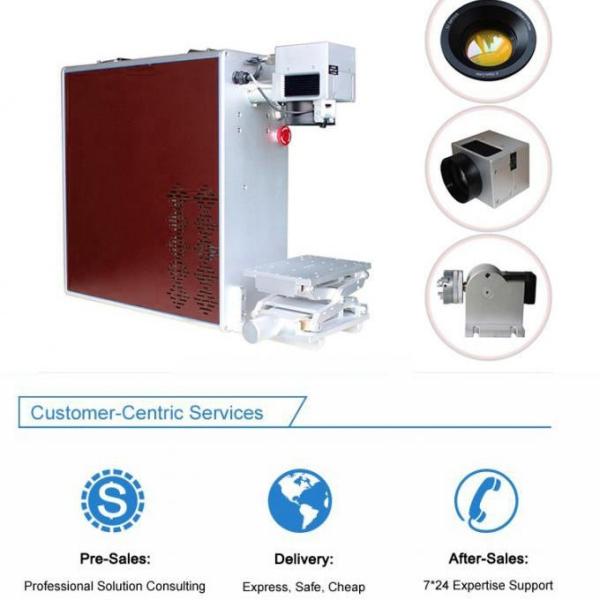

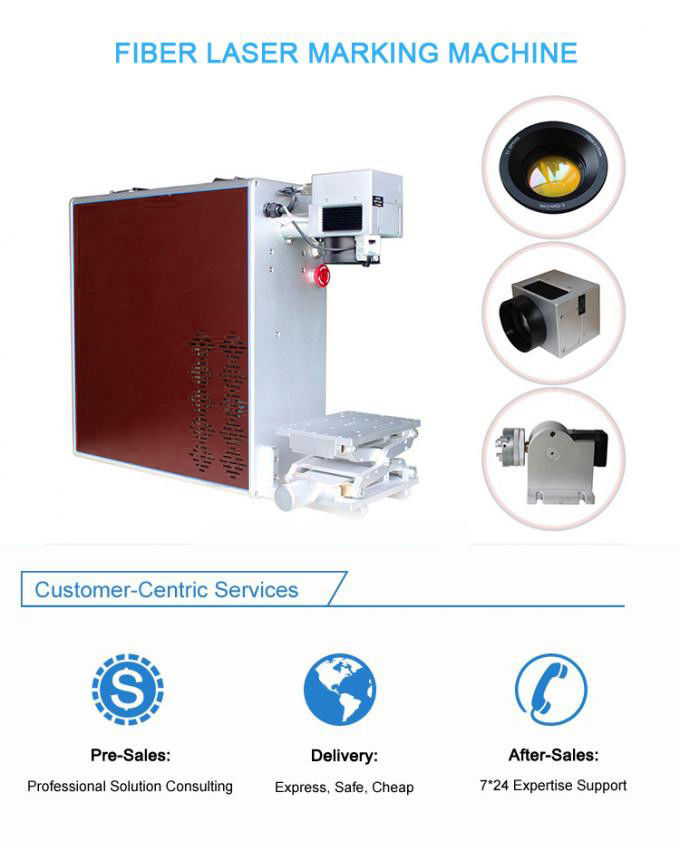

    FDA 0.01mm Portable 20w Fiber Laser Marking Machine


    20W high quality hot sale portable fiber laser marking machine for LED lights


    Products Description:


    Fiber laser marking was specially developed for industrial marking. The robust design with maintenance-free laser source guarantees constantly precise marking on the workpiece. This kind od fiber laser marking machine due to its laser beam is thin, the processing material consumption is small, and the processing heat affected area is small, so its your best choice.


    20w Portable Laser Marking Machine 0.01mm Working Accuracy For LED Lights 0T


    Main features for this 20W high quality hot sale portable fiber laser marking machine


    1. Optical Fiber Laser, environment friendly, easy maintenance.
    2. The laser life can be up to 100000 hours.
    3. Small volume and weight, less than 40KGS.
    4. Runs without consumable spare parts, no need maintenance, great for continuous working.
    5. User-friendly controller and software make operation easier.
    6. Compact, lightweight, simple interface, flexible and adjustable processing direction.
    7. The master switch, red light switch and galvanometer switch.

    8. High-speed scanning galvanometer guarantee high marking speed and high precision.

    9. High precision scale.


    Technical Parameters:


    ProductFiber Laser Marking Machine
    Fiber Laser BrandStandard: MAX
    Fiber Laser Lifetime100,000 hours
    Fiber Laser Power20W, 30W, 50W
    Beam QualityM2≤1.2
    Max. Marking Speed12000mm/s
    Laser Wavelength1064nm
    Marking AreaStandard: 110mm*110mm
    Optional: 70mm*70mm, 150mm*150mm, 200mm*200mm, 300mm*300mm
    High-speed GalvanometerYes
    LensF-Theta Lens
    Fiber Laser Repetition Frequency20KHz-80KHz
    Minimum Character0.05mm
    Marking Depth≤5mm
    Repeated Accuracy±0.001mm
    Minimum Linewidth0.01mm
    Positioning accuracy0.01mm
    Repeatability0.01mm
    Volt110V, 220V, or according to your request
    Cooling ModeAir Cooling
    Graphic Format SupportedPLT, DXF, DXP, AI, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, SDT,BMP,JPG,JPGE ,etc
    Software SupportedCORELDRAW, AUTOCAD, PHOTOSHOP, etc
    System SupportedWindows, MAC OS
    Operating Ambient Temperature5°C-45°C
    Marterial SupportedMetal and Some Non-metal
    Marking SoftwareEZCAD
    Desktop ComputerYes
    Training Videos, User ManuaYes
    Warranty2 years
    Fiber Test ResultsYes
    CertificatesFDA, CE, ISO,RoHS, EUT, FC,CCC,PSE,IC
    USB 2.0 CompatibleYES
    Size (L*W*H)720mm*210mm*510mm
    Weight40KG
    OptionalLaptop, Rotary Device
    PackingWooden case

    Marking samples:
